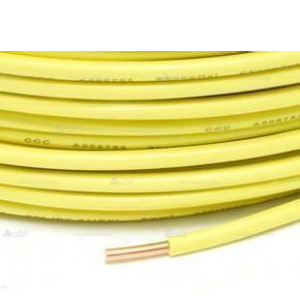

227 IEC01(BV),BLV 450/750V絕緣電纜
產品詳細介紹標 準：本產品按標準GB5023-1997，JB8734-1998或2271IEC******標準制造型 號：227 IEC 01（BV）-銅芯聚氯乙烯絕緣電纜（電線）BLV-鋁芯聚氯乙烯絕緣
- 電 話：0550-7311277
- 傳 真：0550-7311277
- 郵 箱：1045779281@qq.com
產品描述
| 產品詳細介紹 |
| 標 準：本產品按標準GB5023-1997，JB8734-1998或2271IEC******標準制造型 號：227 IEC 01（BV）-銅芯聚氯乙烯絕緣電纜（電線）BLV-鋁芯聚氯乙烯絕緣電纜（電線）BVR-銅芯聚氯乙烯絕緣電纜（電線）227 IEC10（BVV）-銅芯聚氯乙烯絕緣聚氯乙烯護套圓形電纜（電線）BLVV-鋁芯聚氯乙烯絕緣聚氯乙烯護套圓形電纜（電線）BVVB-銅芯聚氯乙烯絕緣聚氯乙烯護套平形電纜（電線）BLVVB-鋁芯聚氯乙烯絕緣聚氯乙烯護套平形電纜（電線）227 IEC 07（BV-90）-銅芯耐熱90℃聚乙烯絕緣電線用 途：本產品適用于交流額定電壓U/U450/750V及以下的動力、照明、日用電器、儀器儀表及電信設備用銅芯或鋁芯聚氯乙烯絕緣電纜（電線）使用特性：1、U0/U為450/750和300/5002、電纜（電線）長期允許工作溫度，BV-90型應不超過90℃，其它型號應不超過 70℃。3、電纜（電線）敷設漫度應不低于0℃. |
| 227 IEC01(BV),BLV 450/750V | |||||||
| 導體標 稱截面 mm2 | 導體線芯 根數/單線 直徑 mm | 絕緣標 稱厚度 mm | 計算外徑 mm | 20°C時 大電流電阻 Ω/km 銅芯 | 70°C小 絕緣電阻 MΩ.km 銅芯 | 成品近似重量 kg/km | |
| 銅芯Cu | 鋁芯Al | ||||||
| 1.5 | 1/1.38 | 0.7 | 2.78 | 12.2 | 0.011 | 19.5 | |
| 1.5 | 7/0.52 | 0.7 | 2.96 | 12.1 | 0.010 | 19.5 | |
| 2.5 | 1/1.78 | 0.8 | 3.38 | 7.41 | 0.010 | 30.8 | 15.4 |
| 2.5 | 7/0.68 | 0.8 | 3.64 | 7.41 | 0.009 | 30.8 | |
| 4 | 1/2.25 | 0.8 | 3.85 | 4.61 | 0.0085 | 45.6 | 21.0 |
| 4 | 7/0.85 | 0.8 | 4.05 | 4.61 | 0.0077 | 45.6 | |
| 6 | 71/2.76 | 0.8 | 4.36 | 3.08 | 0.0070 | 65.3 | 28.2 |
| 6 | 7/1.04 | 0.8 | 4.72 | 3.08 | 0.0065 | 65.3 | |
| 10 | 7/1.35 | 1 | 6.05 | 1.83 | 0.0065 | 111 | 49.0 |
| 16 | 7/1.70 | 1 | 7.1 | 1.15 | 0.0050 | 169 | 69 |
| 25 | 7/2.14 | 1.2 | 8.82 | 0.727 | 0.0050 | 265 | 108 |
| 35 | 7/2.52 | 1.2 | 9.96 | 0.524 | 0.0040 | 359 | 140 |
| 50 | 19/1.78 | 1.4 | 11.7 | 0.387 | 0.0045 | 485 | 190 |
| 70 | 19/2.14 | 1.4 | 13.5 | 0.268 | 0.0035 | 685 | 258 |
| 95 | 19/2.52 | 1.6 | 15.8 | 0.193 | 0.0035 | 946 | 354 |
| 120 | 37/2.03 | 1.6 | 17.4 | 0.153 | 0.0032 | 1181 | 433 |
| 150 | 37/2.25 | 1.8 | 19.4 | 0.124 | 0.0032 | 1453 | 534 |
| 185 | 37/2.52 | 2 | 21.6 | 0.0991 | 0.0032 | 1821 | 668 |
| 240 | 61/2.25 | 2.2 | 24.6 | 0.0754 | 0.0032 | 2383 | 869 |
| 300 | 61/2.52 | 2.4 | 27.5 | 0.0601 | 0.003 | 2983 | 1082 |
| 400 | 61/2.90 | 2.6 | 30.8 | 0.0470 | 0.0028 | 3800 | 1369 |
| BVR450/750V | |||||||||
| 標稱 截面 mm2 | 線芯結構 | 絕緣厚度mm | 計算外徑mm | 大外徑mm | 20°C時大電流電阻 Ω/km 銅芯 | 70°C小絕緣電阻 MΩ.km | 環境溫度25°C 允許空氣中 敷設截流量 [A] | 成品 近似 重量 kg/km | |
| 根/直徑 mm | 外徑 mm | ||||||||
| 2.5 | 19/0.41 | 2.05 | 0.8 | 3.7 | 4.2 | 7.41 | 0.011 | 34 | 33.0 |
| 4.0 | 19/0.52 | 2.60 | 0.8 | 4.2 | 4.8 | 4.61 | 0.009 | 45 | 49.0 |
| 6.0 | 19/0.64 | 3.20 | 0.8 | 4.8 | 5.6 | 3.08 | 0.0084 | 58 | 71.0 |
| 10.0 | 49/0.52 | 4.68 | 1.0 | 6.7 | 7.6 | 1.83 | 0.0072 | 79 | 125.5 |
| 16 | 49/0.64 | 5.76 | 1.0 | 7.8 | 8.8 | 1.15 | 0.0062 | 111 | 181.0 |
| 25 | 98/0.58 | 7.68 | 1.2 | 10.1 | 11.1 | 0.727 | 0.0058 | 146 | 302 |
| 35 | 133/0.58 | 8.20 | 1.2 | 11.1 | 12.5 | 0.524 | 0.0052 | 180 | 395 |
| 50 | 133/0.68 | 10.20 | 1.4 | 13.0 | 14.5 | 0.387 | 0.0051 | 225 | 544 |
| 70 | 189/0.68 | 12.55 | 1.4 | 15.4 | 16.5 | 0.268 | 0.0045 | 280 | 728 |
| 227 IEC 10(BVV),300/500 | ||||||||
| 導體芯數 和 標稱截面 mm | 導體結構 根數/單線 直徑 mm | 絕緣 厚度 規定值 mm | 內護套 厚度 近似值 mm | 護套 厚度 規定值 mm | 平均外徑 | 70°C小 絕緣電阻 MΩ.km | 成品 近似 重量 kg/km | |
| 下限 mm | 上限 mm | |||||||
| 2x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 7.6 | 10.0 | 0.011 | 105.7 |
| 2x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 7.8 | 10.5 | 0.010 | 111.3 |
| 2x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 8.6 | 11.5 | 0.010 | 114.6 |
| 2x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9.0 | 12.0 | 0.009 | 167.9 |
| 2x4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 9.6 | 12.5 | 0.0085 | 190.3 |
| 2x4 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.0077 | 214.1 |
| 2x6 | 1/2.76 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 0.0070 | 245.5 |
| 2x6 | 7/1.04 | 0.8 | 0.4 | 1.2 | 11.0 | 14.0 | 0.0065 | 282.0 |
| 2x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 13.0 | 16.5 | 0.0070 | 446.2 |
| 2x16 | 7/1.70 | 1.0 | 0.6 | 1.4 | 15.5 | 20.0 | 0.0052 | 617.1 |
| 2x25 | 7/2.14 | 1.2 | 0.8 | 1.4 | 18.5 | 24.0 | 0.0050 | 914.7 |
| 2x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 21.0 | 27.5 | 0.0044 | 1225.0 |
| 3x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.0 | 10.5 | 0.011 | 124.5 |
| 3x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 8.2 | 11.0 | 0.010 | 143.5 |
| 3x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 9.2 | 12.0 | 0.010 | 175.0 |
| 3x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9.4 | 12.5 | 0.009 | 202.4 |
| 3x4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.0085 | 235.8 |
| 3x4 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.5 | 13c.5 | 0.0077 | 261.6 |
| 3x6 | 1/2.76 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0070 | 320.0 |
| 3x6 | 7/1.04 | 0.8 | 0.4 | 1.4 | 12.0 | 15.5 | 0.0065 | 362.5 |
| 3x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 14.0 | 17.5 | 0.0070 | 557.9 |
| 3x16 | 7/1.7 | 1.0 | 0.8 | 1.4 | 16.5 | 21.5 | 0.0052 | 799.6 |
| 3x25 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26.0 | 0.0050 | 1192.4 |
| 3x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 22.0 | 29.0 | 0.0044 | 1577.5 |
| 4x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.6 | 11.5 | 0.011 | 152.4 |
| 4x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9.0 | 12.0 | 0.010 | 172.6 |
| 4x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.010 | 215.3 |
| 4x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 10.0 | 13.5 | 0.009 | 246.7 |
| 4x4 | 1/2.25 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0085 | 302.5 |
| 4x4 | 7/0.85 | 0.8 | 0.4 | 1.4 | 12.0 | 15.0 | 0.0077 | 335.2 |
| 4x6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 12.5 | 16.0 | 0.00700 | 398.1 |
| 4x6 | 7/1.04 | 0.8 | 0.6 | 1.4 | 13.0 | 17.0 | 0.0065 | 464.0 |
| 4x10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 15.5 | 19.0 | 0.0070 | 695.5 |
| 4x16 | 7/1.70 | 1.0 | 0.8 | 1.4 | 18.0 | 23.5 | 0.0052 | 1009.2 |
| 4x25 | 7/2.14 | 1.2 | 1.0 | 1.6 | 22.5 | 28.5 | 0.0050 | 1528.2 |
| 4x35 | 7/2.52 | 1.2 | 1.0 | 1.6 | 24.5 | 32.0 | 0.0044 | 1997.2 |
| 5x1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 9.4 | 12.0 | 0.011 | 183.2 |
| 5x1.5 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9.8 | 12.5 | 0.010 | 205.8 |
| 5x2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 11.0 | 14.0 | 0.010 | 259.6 |
| 5x2.5 | 7/0.68 | 0.8 | 0.4 | 1.2 | 11.0 | 14.5 | 0.009 | 297.2 |
| 5x4 | 1/2.25 | 0.8 | 0.6 | 1.4 | 12.5 | 16.0 | 0.0085 | 365.1 |
| 5x4 | 7/085 | 0.8 | 0.6 | 1.4 | 13.0 | 17.0 | 0.0077 | 419.7 |
| 5x6 | 1/2.76 | 0.8 | 0.6 | 1.4 | 13.5 | 17.5 | 0.0070 | 498.3 |
| 5x6 | 7/1.04 | 0.8 | 0.6 | 1.4 | 14.5 | 18.5 | 0.0065 | 563.6 |
| 5x10 | 7/1.70 | 1.0 | 0.6 | 1.4 | 17.0 | 21.0 | 0.0070 | 849.0 |
| 5x16 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26.0 | 0.0052 | 1254.7 |
| 5x25 | 7/2.14 | 1.2 | 1.0 | 1.6 | 24.5 | 31.5 | 0.0050 | 1874.1 |
| 5x35 | 7/2.52 | 1.2 | 1.2 | 1.6 | 27.0 | 35.0 | 0.0044 | 2481.4 |
| BVV BLVV 300/500V JBB8734.2-1998芯數X截面導體結構絕緣厚度絕緣外徑護套厚度護套外徑材料凈重成品近似重量根/單線直徑直徑銅Cu鋁AlPVC絕緣PVC護套銅Cu鋁Al1x0.751/0.970.970.62.20.83.86.6 4.210.321.1 1x1.01/1.131.130.62.50.84.18.9 5.311.425.6 1x1.51/1.381.380.72.80.84.413.3 6.412.432.1 1x1.57/0.521.560.73.20.84.813.3 8.713.835.8 1x2.51/1.781.780.83.40.85.022.16.79.014.545.630.21x2.57/0.682.040.83.90.85.522.8 12.416.251.4 1x41/2.252.250.83.90.95.735.410.810.918.664.940.31x47/0.852.550.84.40.96.235.6 14.620.570.7 1x61/2.762.760.84.40.96.253.216.212.620.586.349.31x67/1.043.120.85.10.96.953.3 18.723.295.2 1x107/1.354.051.06.30.98.189.827.027.027.9144.781.9 |
| BVVB BLVVB 300/500V JB8734.2-1998芯數X截面導體結構絕緣護套厚度mm 材料凈重Kd/km成品近似重量kg/km根/單線直徑直徑mm 厚度mm 直徑mm 銅Cu鋁AlPVC絕緣PVC護套銅Cu鋁Al2x0.751/0.970.970.62.170.913.1 8.117.038.2 2x1.01/1.131.130.62.330.917.8 8.918.044.7 2x1.51/1.381.380.72.780.929.9 12.521.063.4 2x2.51/1.781.780.83.381.044.213.417.828.090.159.22x41/2.252.250.83.851.070.721.521.031.4123.173.92x47/0.852.550.84.201.071.2 23.933.9129.0 2x61/2.762.760.84.361.1106.432.324.539.0169.995.82x67/1.043.120.84.801.1106.5 28.642.4177.5 2x107/1.354.051.06.101.2179.554.044.757.7281.9156.43x0.751/0.970.970.62.170.919.7 12.222.654.5 3x1.01/1.131.130.62.330.926.8 13.424.064.1 3x1.51/1.381.380.72.780.944.8 18.828.091.6 3x2.51/1.781.780.83.381.066.420.126.637.4130.484.13x41/2.252.250.83.851.1106.132.231.546.6184.2110.33x47/0.852.550.84.201.1106.7 35.950.4193.0 3x61/2.762.760.84.361.1159.748.436.752.0248.4137.13x67/1.043.120.84.801.1159.8 42.957.0259.7 3x107/1.354.051.06.101.2269.381.167.177.8414.2226.0 |
